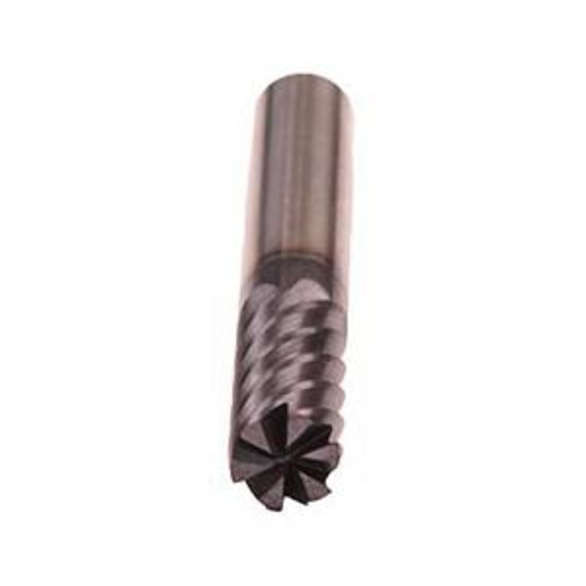

Emuge 1827A.008 Square End Mills 8mm Milling Dia, 19mm LOC, 63mm OAL, 6 Flutes, Carbide
EMUGE 1827A.008
$107.27
/ EA
Out of Stock
- Number of Flutes: 6
- Length of Cut: 19 mm
- Material: Carbide
- Finish/Coating: TiAlN Coated
- Shank Diameter: 8 mm
- Shank Diameter - Metric: 8 mm
- Overall Length: 63 mm
- Cutting Direction: Right Hand
- Helix Angle: 50 deg
- Chamfer Length: 0.1 in
- Cutter Diameter: 8 mm
- Diameter: 0.31496 in
- Diameter - Metric: 8 mm
- Finish: TiAlN Coated
- Length of Cut - Metric: 19 mm
- Length Type: Long Length
- Overall Length - Metric: 63 mm
- Series: Hard-Cut 1827A
- Shank Type: Cylindrical
- Type: Hard Cut
- Flute Type: Spiral
- Cutter Diameter - Metric: 8 mm
- Diameter - Decimal: 0.31496 in
- Hard-Cut series of carbide end mills is specifically developed for machining hardened materials (up to 66 Rc)
- Well suited for the die and mold industry and are manufactured with extremely tight tolerances
- Multi-flute - 6, 8 and 10 flute construction for hard milling
- Premium sub-micro grain carbide substrate
- TiAlN coated for heat and wear resistance
Standards/Approvals: DIN 6535|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For roughing applications
Emuge Square End Mill | Standard Length | Series: Hard-Cut 1827A | 8 mm Cutter Dia | 63 mm Overall Length | 19 mm Maximum Depth of Cut | 6 Flutes | Spiral Flute | 8 mm Shank Dia | Right Hand Cutting | 50 deg Helix Angle | Cylindrical Shank | Carbide | TiAlN Coated
