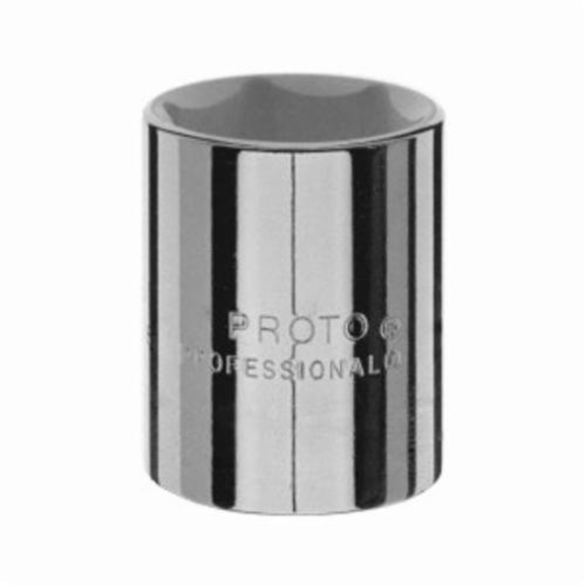

Proto® TorquePlus™ J5424H Standard Length Drive Socket, Imperial, 3/4 in 6 Point Socket, 1/2 in Square Drive
PROTO J5424H
$11.36
/ EA
Out of Stock
- Bolt Clearance Depth: 21/32 in
- Drive End Width: 1-1/32 in
- Drive Size: 1/2 in
- Drive Type: Square
- Finish: Full Polished
- Locking Type: Ball
- Material: Alloy Steel
- Opening Depth: 11/16 in
- Overall Length: 1-1/2 in
- Socket End Width: 1-1/32 in
- Socket Size: 3/4 in
- Socket Type: 6 Point
- Type: Standard Length
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded, or rusted fasteners
- Deep hand sockets are designed to access hard to reach areas
- Standard hand sockets are used in conjunction with a hand-powered ratchet or similar driver to turn fasteners
- Hex output
- For use on stubborn or damaged fasteners and also on fasteners made from soft material
Warranty: Lifetime
Standard/Approvals: ASME B107.110-2012, AS954E S3.8.1
Proto® TorquePlus™ Drive Socket | Standard Length | Measurement System Imperial | 1/2 in Drive | Square Drive | 6 Point Socket | 3/4 in Socket | 1-1/2 in Overall Length | 1-1/32 in Drive End Width | 1-1/32 in Socket End Width | 21/32 in Bolt Clearance Depth | 11/16 in Opening Depth | Ball Locking | Alloy Steel | Full Polished | STA-BLKHAW
