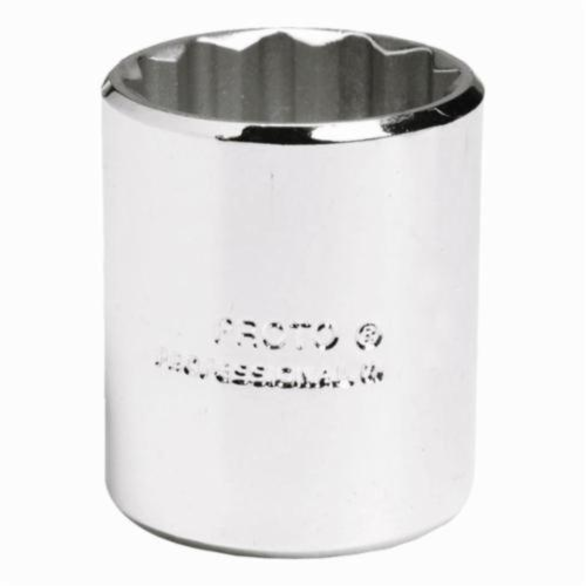

Proto® J5219M Standard Length Drive Socket, Metric, 19 mm 12 Point Socket, 3/8 in Square Drive
PROTO J5219M
$0.00
/ EA
Out of Stock
- Bolt Clearance Depth: 1/2 in
- Drive End Width: 1 in
- Drive Size: 3/8 in
- Drive Type: Square
- Finish: Full Polished
- Locking Type: Ball
- Material: Alloy Steel
- Opening Depth: 17/32 in
- Overall Length: 1-3/16 in
- Socket End Width: 1 in
- Socket Type: 12 Point
- Type: Standard Length
- The TorquePlus™ design is a high performance Drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
For use on stubborn or damaged fasteners and also on fasteners made from soft materials
Standard/Approvals: ASME B107.110-2012, AS954E S3.8.1
Proto® Drive Socket | Standard Length | Measurement System Metric | 3/8 in Drive | Square Drive | 12 Point Socket | 19 mm Socket | 1-3/16 in Overall Length | 1 in Drive End Width | 1 in Socket End Width | 1/2 in Bolt Clearance Depth | 17/32 in Opening Depth | Ball Locking | Alloy Steel | Full Polished | STA-BLKHAW
