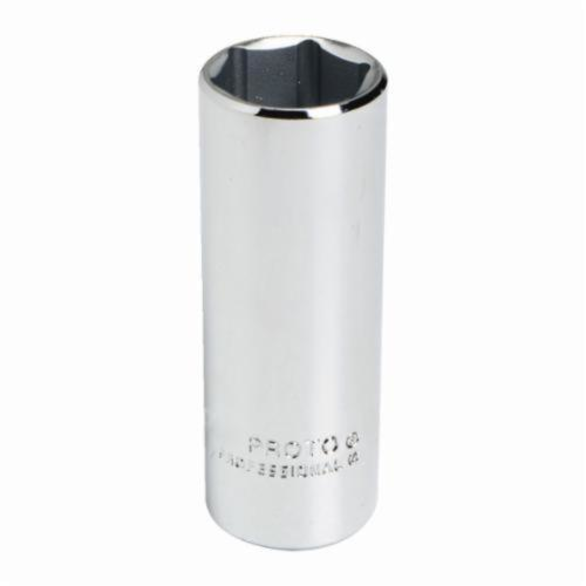

Proto® J5012MH Deep Length Drive Socket, Metric, 12 mm 6 Point Socket, 3/8 in Square Drive
PROTO J5012MH
$10.15
/ EA
Out of Stock
- Bolt Clearance Depth: 38.1 mm
- Drive End Width: 17.7 mm
- Drive Size: 3/8 in
- Drive Type: Square
- Finish: Full Polished
- Locking Type: Ball
- Material: Alloy Steel
- Opening Depth: 13 mm
- Overall Length: 2-1/8 in
- Socket End Width: 17.7 mm
- Socket Type: 6 Point
- Type: Deep Length
- The torqueplus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The torqueplus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The torqueplus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded, or rusted fastener s
- Nut end outside diameter of 45/64 in
- Drive end outside diameter of 45/64 in
- Nut depth of 33/64 in
Standard/Approvals: ASME B107.110-2012
Proto® Drive Socket | Deep Length | Measurement System Metric | 3/8 in Drive | Square Drive | 6 Point Socket | 12 mm Socket | 2-1/8 in Overall Length | 17.7 mm Drive End Width | 17.7 mm Socket End Width | 38.1 mm Bolt Clearance Depth | 13 mm Opening Depth | Ball Locking | Alloy Steel | Full Polished | STA-BLKHAW
