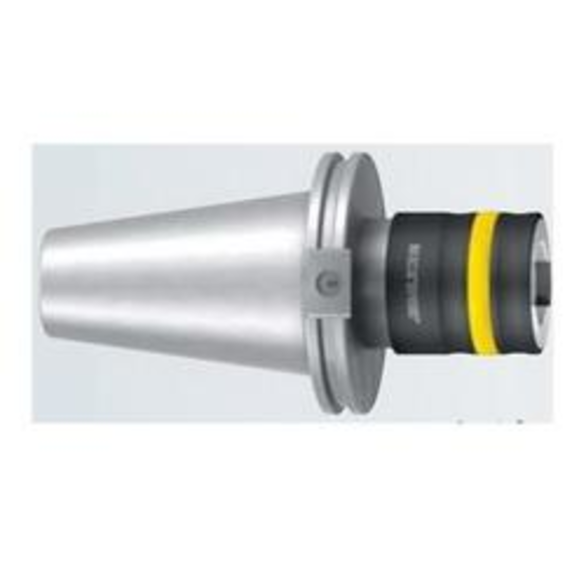

Emuge F3304783.16 KSN Tension/Compression Quick-Change Tap Holder, Tapered Shank, CAT50 Taper, EM04 Adapter, M36 Max Tap Capacity

EMUGE F3304783.16
$1,863.09 / EA
Out of Stock
Emuge F3304783.16 KSN Tension/Compression Quick-Change Tap Holder, Tapered Shank, CAT50 Taper, EM04 Adapter, M36 Max Tap Capacity
  • Shank Type: Tapered
  • Minimum Tap Capacity: M14
  • Maximum Tap Capacity: M36
  • Projection: 6.2598 in
  • Taper Size: CAT50
  • Adapter Size: EM04
  • Nose Diameter: 3.0709 in
  • Series: KSN
  • Quick-change ball tap clamping system or clamping on the square for KSN 4 style holders
  • Accommodates tap sizes - M14 to M36/9/16 to 1-3/8 in
  • Length compensation on tension/compression
  • Pressure point release mechanism
  • Front release feature protects against damage from excessive axial tension
  • Uses an EM 04 quick-change adapter

Standards/Approvals: DIN 69873|ASME B5.50

For use on CNC machining centers, other machine tools and pillar drilling machines

Emuge Quick-Change Tap Holder | Tension/Compression | Series: KSN | Tapered Shank | CAT50 Taper | M14 Minimum Tap Capacity | M36 Maximum Tap Capacity | 6.2598 in Projection | EM04 Adapter | 3.0709 in Nose Dia
