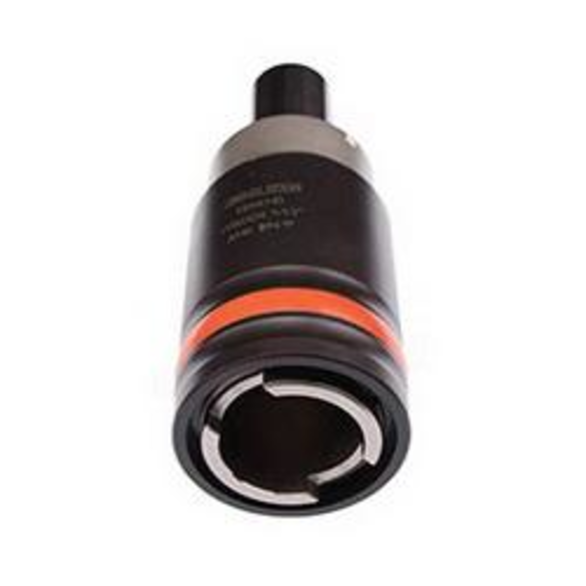

Emuge F3104H40.1 KSN/HD Tension/Compression Quick-Change Tap Holder With Axial Through Coolant, Weld-On Flat Shank, EM04 Adapter, M36 Max Tap Capacity
EMUGE F3104H40.1
$1,821.46
/ EA
Out of Stock
- Shank Type: Weldon Flat
- Minimum Tap Capacity: M14
- Maximum Tap Capacity: M36
- Projection: 5.7874 in
- Shank Diameter: 1 1/2 in
- Shank Diameter - Fractional: 1 1/2 in
- Adapter Size: EM04
- Nose Diameter: 3.1496 in
- Series: KSN/HD
- Quick-change ball tap clamping system KSN 4/HD style holder
- Accommodates tap sizes - M14 to M36/9/16 to 1-3/8 in
- Length compensation on tension/compression
- Pressure point release mechanism
- Front release feature protects against damage from excessive axial tension
- Uses an EM 04 quick-change adapter
- HD coolant fed design (50 bar/700 psi maximum)
Standards/Approvals: ASME B94.19
For use on CNC machining centers and other machine tools
Emuge Quick-Change Tap Holder | Tension/Compression | Series: KSN/HD | Weld-On Flat Shank | 1-1/2 in Shank Dia | M14 Minimum Tap Capacity | M36 Maximum Tap Capacity | 5.7874 in Projection | EM04 Adapter | 3.1496 in Nose Dia
