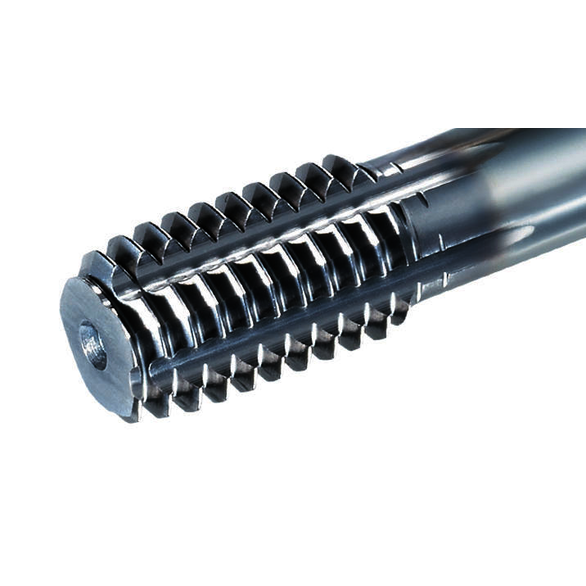

EXOPRO® XPF-LS 1635516521 16355/LT-S-XPF Extreme Premium Fluteless High Performance Long Shank Thread Forming Tap, M16-1.5 Thread, D11 Thread Limit
OSG 1635516521
$329.81
/ EA
Out of Stock
- Thread Size: M16-1.5
- Overall Length: 180.00 mm
- Thread Standard: Metric
- Finish/Coating: V-Coated
- Material: HSS-CO
- Chamfer Type: 2.5P Modified Bottoming
- Class of Fit: 6H
- Measurement System: Metric
- Overall Length - Metric: 180 mm
- Series: 16355/LT-S-XPF
- Shank Diameter - Decimal: 12.19 mm
- Square Size: 14.3 mm L x 9.1 mm W
- Thread Length: 20 mm
- Thread Length - Metric: 20 mm
- Thread Limit: D11
The EXOPRO® XPF & S-XPF represent a new evolution in forming tap technology. These form taps generate up to 50% less torque versus other forming taps, making it feasible to tap materials up to 40 HRC and sizes up to or exceeding 1" in diameter.
- Fluteless Forming Tap
- 40-50% less machining torque
- Coolant-fed version also available (S-XPF)
- DIN Overall Length
Application:Aluminum Alloy, Cast Aluminum, Carbon Steels, Alloy Steel, Die Steel, Stainless Steel, Hardened Steel < 40 HRC.Higher performance with XPF is achieved when running at higher SFM.Forming is possible in Nickel Alloys such as Inconel 718 for thread sizes under 1/4".
OSG 1635516521 | Thread Limit D11 | Chamfer 2.5P | V Coated | HSS-CO | Thread Forming Tap
