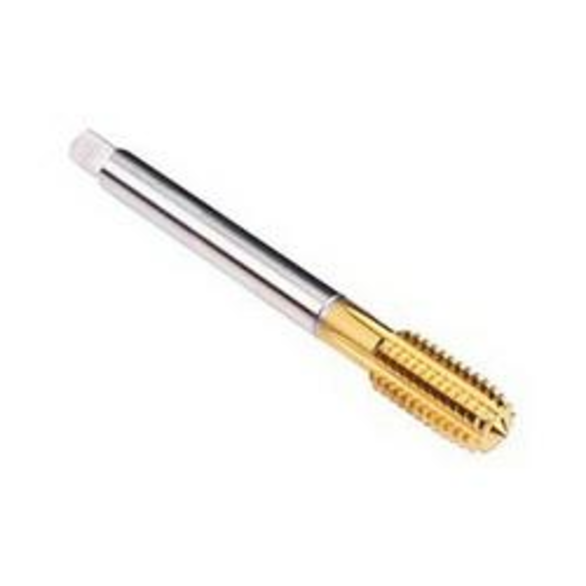

Emuge C0921400.0112 Druck 2-STEEL-SN C0921400 Form C Reduced Shank Thread Forming Tap, M12x1.75 Thread
EMUGE C0921400.0112
$110.35
/ EA
Out of Stock
- Thread Standard: Coarse
- Finish/Coating: TiN Coated
- Material: HSS-E
- Chamfer Type: Modified Bottoming
- Class of Fit: 6HX
- Cutting Direction: Right Hand
- Overall Length - Metric: 110 mm
- Series: Druck 2-STEEL-SN C0921400
- Shank Diameter - Metric: 9 mm
- Shank Length - Metric: 86 mm
- Thread Length - Metric: 24 mm
- The druck STEEL roll form tap is a universal design for the chipless production of internal threads, blind and through hole
- TiN coated for additional tool life
- With or without lube grooves
- DIN/DIN or the shorter ANSI/ANSI standard dimensions for overall length and shank size
Standards/Approvals: DIN/DIN Standard|DIN 13|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For threading to the bottom of blind holes
Emuge Thread Forming Tap | Form C Reduced Shank | Series: Druck 2-STEEL-SN C0921400 | Measurement System: Metric | M12x1.75 | Coarse | Modified Bottoming Chamfer | 24 mm Thread Length | 110 mm Overall Length | Right Hand Cutting | Class of Fit: 6HX | 9 mm Shank Dia | 86 mm Shank Length | 11.25 mm Tap Drill | 7 mm Square Size | HSS-E | TiN Coated
