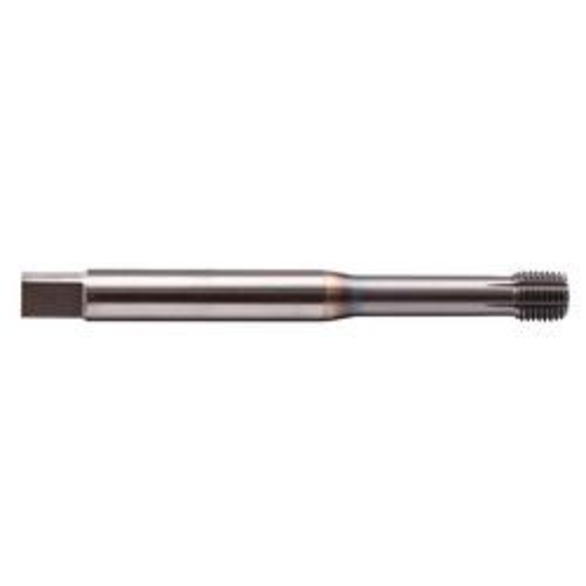

Emuge BU44Q200.5009 InnoForm 1-GAL/E-SN IKZ BU44Q200 Form E Thread Forming Tap, 1/4-20 Thread
- Thread Size: 1/4-20
- Overall Length: 3.15 in
- Thread Standard: UNC
- Finish/Coating: TiCN Coated
- Material: HSS-E
- Chamfer Type: Bottoming
- Class of Fit: 2BX
- Cutting Direction: Right Hand
- Series: InnoForm 1-GAL/E-SN IKZ BU44Q200
- Shank Diameter: 0.255 in
- Shank Length: 1.97 in
- Thread Length: 0.669 in
Cast aluminum materials exert a very strong abrasive stress on the forming lobes of a cold forming tap during work. In addition, the ductile properties of these rather brittle materials must be regarded as relatively poor. In order to achieve easier thread production and better wear resistance even under these bad conditions, InnoForm GAL/E has a specially adjusted geometry and an additional hard surface coating.
- IKZ - axial coolant hole design
- Lubrication grooves
- TiCN coated for wear resistance and added tool life
- DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks
Standards/Approvals: DIN/ANSI Standard|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
Emuge Thread Forming Tap | Form E | Series: InnoForm 1-GAL/E-SN IKZ BU44Q200 | Measurement System: Imperial | 1/4-20 | UNC | Bottoming Chamfer | 0.669 in Thread Length | 3.15 in Overall Length | Right Hand Cutting | Class of Fit: 2BX | 0.255 in Shank Dia | 1.97 in Shank Length | HSS-E | TiCN Coated
