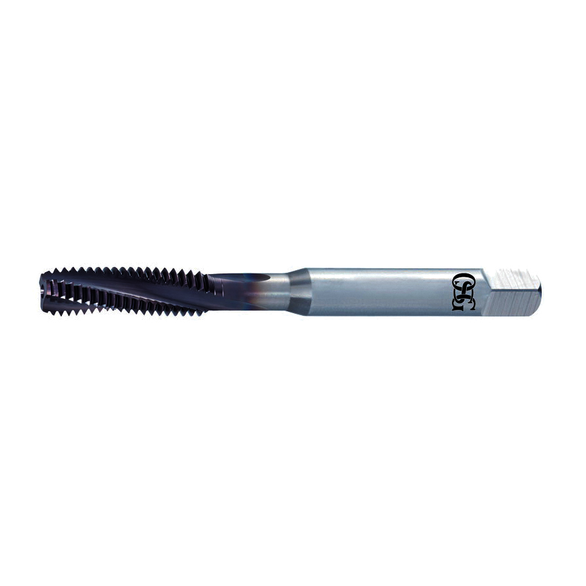

OSG 1660000600 M10x1.50, 1.5P, Right Hand, Spiral Flute Tap
OSG 1660000600
$213.68
/ EA
Out of Stock
- Coolant Through: Yes
- Thread Size: M10-1.5
- Material: Carbide
- Finish/Coating: Bright
- Number of Flutes: 3
- Thread Limit: D6
- Chamfer Type: 1.5P Bottoming
- Helix Angle: 15 Degree
- Material Application: Cast Iron, Aluminum and Cast Aluminum
- Measurement System: Metric
- Overall Length: 100.00 mm
- Overall Length - Metric: 100 mm
- Series: 16600
- Shank Diameter - Decimal: 9.67 mm
- Shank Diameter - Metric: 9.67 mm
- Size: M10
- Thread Length: 18 mm
- Thread Length - Metric: 18 mm
A Brand® A-CSF is an Advanced Performance Carbide Coolant-Through Taps for Cast Iron and Aluminum Alloy
- Larger Oil Hole Design Excellent coolant flow
- Bright Finish Greater performance in non-ferrous materials
- Ultra-Fine Grain Carbide For high wear resistance and toughness.
Application:Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
OSG 1660000600 M10x1.50 | 1.5P | Right Hand | NORMAL | D6 | Spiral Flute Tap
