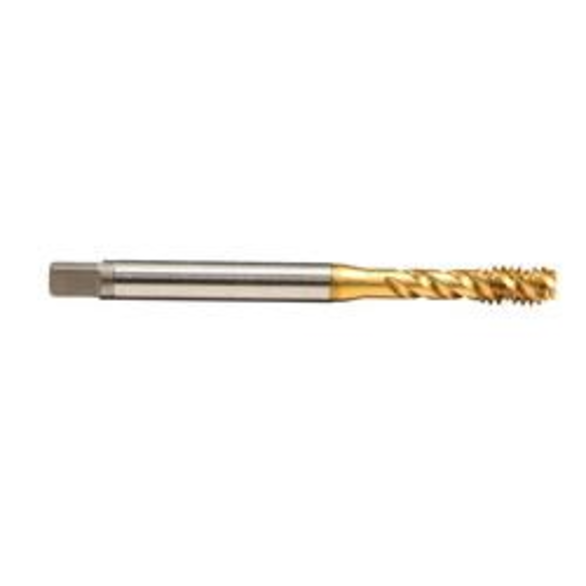

Emuge BW553700.5044 Enorm 1-SPEED IKZ BW553700 Form C Reinforced Shank Spiral Flute Tap, Right Hand Cutting, 5/16-24 Thread, Modified Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, TiN Coated, HSS-E
EMUGE BW553700.5044
$100.13
/ EA
Out of Stock
- Coolant Through: Yes
- Thread Size: 5/16-24
- Material: HSS-E
- Finish/Coating: TiN Coated
- Number of Flutes: 3
- Flute Direction: Right Hand
- Class of Fit: 2B
- Chamfer Type: Modified Bottoming
- Cutting Direction: Right Hand
- Series: Enorm 1-SPEED IKZ BW553700
- Shank Diameter: 0.318 in
- Shank Length: 2.283 in
- Thread Length: 0.787 in
- Thread Standard: UNF
- Overall Length: 3.543 in
- Speed taps are able to operate at higher cutting speeds than conventional designs
- IKZ - axial coolant fed construction
- TiN coated for additional tool life
- DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks
Standards/Approvals: DIN/ANSI Standard|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For blind hole applications
Emuge Spiral Flute Tap | Form C Reinforced Shank | Series: Enorm 1-SPEED IKZ BW553700 | Measurement System: Imperial | UNF | 5/16-24 | Modified Bottoming Chamfer | 3 Flutes | HSS-E | TiN Coated | Class of Fit: 2B | Right Hand Cutting | 0.787 in Thread Length | 3.543 in Overall Length | 0.318 in Shank Dia | 2.283 in Shank Length | Right Hand Flute Direction
