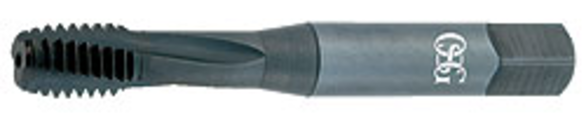

OSG 1716701, UNF, 3 Flute, Spiral Flute STI Tap
OSG 1716701
$48.42
/ EA
Out of Stock
- Finish/Coating: Steam Oxide
- Material: VC-10
- Number of Flutes: 3
- Overall Length: 2.718 in
- Thread Length: 0.555 in
- Thread Size: 5/16-24
- Thread Standard: UNF
- Chamfer Type: 2.5P-3P Modified Bottoming
- Measurement System: Imperial
- Overall Length - Decimal: 2.93 mm
- Series: 315
- Shank Diameter - Decimal: 0.38 in
- Square Size: 0.437 in L x 0.285 in W
EXOTAP® VC-10 is the premium solution for tapping helicoil (STI) threads in difficult to machine materials.
- Premium Powdered Metal VC-10 substrate
- Increased hardness for longer life
- Spiral Flute
- For blind hole applications
- Steam Oxide surface treatment
- S/O increases mechanical lubricity
- OSG V-coating
- Increased hardness, lubricity & wear resistance
- Inch & Metric
- Complete Offering
- Screw Thread Insert (STI) tap
- Repair stripped threaded holes.
OSG 1716701 | UNF | 3 Flute | 15 Degree | 2.5P - 3P | Spiral Flute STI Tap
