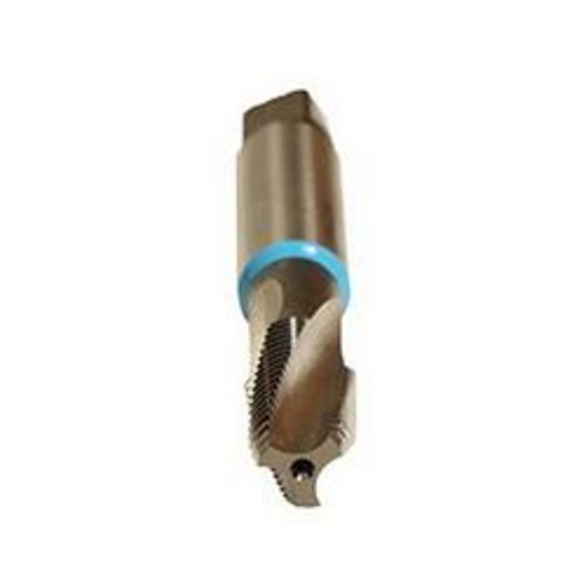

Emuge CW483000.5764 Rekord 2-KEG R15-VA Form C Long Reinforced Shank Pipe Tap, 15 deg Helix
EMUGE CW483000.5764
$83.35
/ EA
Out of Stock
- Finish/Coating: Bright
- Material: HSS-E
- Number of Flutes: 3
- Overall Length: 3.6 in
- Shank Diameter: 7/16 in
- Square Size: 0.328 in
- Thread Size: 1/8-27
- Thread Standard: NPT
- Chamfer Type: Modified Bottoming
- Cutting Direction: Right Hand
- Helix Angle: 15 deg
- Series: Rekord 2-KEG R15-VA CW483000
- Thread length - Fractional: 3/4 in
- Shank Diameter - Fractional: 7/16 in
- NPT American tapered pipe thread per ANSI/ASME B1.20.1
- Standard taper 1:16
- ANSI/ANSI standard dimensions for overall length and shank size
- ANSI taps have a shorter overall length than DIN dimension taps
- Rekord KEG D-VA slow spiral style is best suited for stainless steel and steel materials
Standards/Approvals: DIN/ANSI Standard|ANSI/ASME B1.20.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For blind and through hole applications
Emuge Pipe Tap | Form C Long Reinforced Shank | Series: Rekord 2-KEG R15-VA CW483000 | Measurement System: Imperial | 1/8-27 Size | NPT Thread Standard | 15 deg Helix Angle | Modified Bottoming Chamfer | 3/4 in Thread Length | 3.6 in Overall Length | 3 Flutes | Right Hand Cutting Direction | 7/16 in Shank Diameter | 0.328 in Square | HSS-E | Bright
