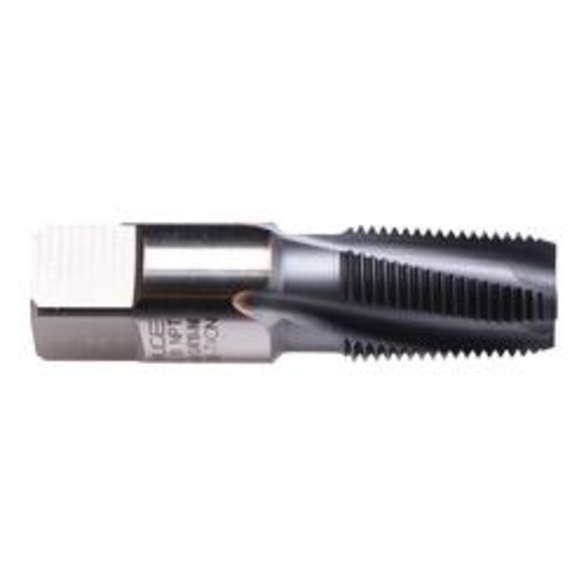

Emuge AW79J400.5784 Rekord KEG-R10-NI Form C Reinforced Shank Slow Spiral Flute Pipe Tap, 10 deg Helix
EMUGE AW79J400.5784
$149.65
/ EA
Out of Stock
- Finish/Coating: TiCN Coated
- Material: HSS-E
- Number of Flutes: 3
- Shank Diameter: 9/16 in
- Square Size: 0.421 in
- Thread Length: 1.06 in
- Thread Size: 1/4-18
- Thread Standard: NPTF
- Chamfer Type: Modified Bottoming
- Cutting Direction: Right Hand
- Helix Angle: 10 deg
- Overall Length - Fractional: 5-1/4 in
- Series: Rekord KEG-R10-NI AW79J400
- Shank Diameter - Fractional: 9/16 in
- Best suited for nickel alloys and high tensile materials
- NPTF American tapered pipe thread per ANSI B1.20.3
- Standard taper 1:16
- Powdered metal HSSE-PM substrate for added wear resistance
- TiCN coated for additional tool life
- ANSI/ANSI standard dimensions for overall length and shank size
Standards/Approvals: ANSI/ANSI Specified|ANSI B1.20.3|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For NPT or NPTF through and blind hole applications
Emuge Pipe Tap | Form C Reinforced Shank Slow Spiral Flute | Series: Rekord KEG-R10-NI AW79J400 | Measurement System: Imperial | 1/4-18 Size | NPTF Thread Standard | 10 deg Helix Angle | Modified Bottoming Chamfer | 1.06 in Thread Length | 5-1/4 in Overall Length | 3 Flutes | Right Hand Cutting Direction | 9/16 in Shank Diameter | 0.421 in Square | HSS-E | TiCN Coated
