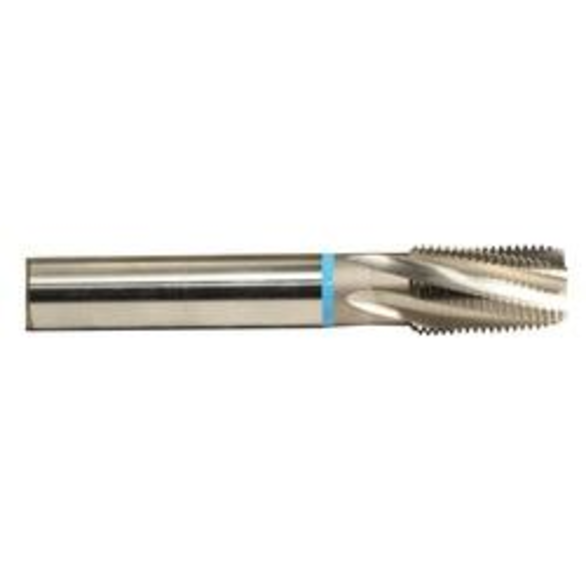

Emuge AW483000.5769 Rekord KEG R15-VA Form C Reduced Shank Pipe Tap, 15 deg Helix
EMUGE AW483000.5769
$410.49
/ EA
Out of Stock
- Shank Diameter: 1 1/8 in
- Square Size: 0.843 in
- Thread Size: 1-11-1/2
- Thread Standard: NPT
- Material: HSS-E
- Finish/Coating: Bright
- Number of Flutes: 5
- Overall Length: 7 in
- Chamfer Type: Modified Bottoming
- Cutting Direction: Right Hand
- Helix Angle: 15 deg
- Series: Rekord KEG R15-VA AW483000
- Shank Diameter - Fractional: 1 1/8 in
- Thread length - Fractional: 1-3/4 in
- NPT American tapered pipe thread per ANSI/ASME B1.20.1
- Standard taper 1:16
- ANSI/ANSI standard dimensions for overall length and shank size
- ANSI taps have a shorter overall length than DIN dimension taps
- Rekord KEG D-VA slow spiral style is best suited for stainless steel and steel materials
Standards/Approvals: ANSI/ANSI Specified|ANSI/ASME B1.20.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For blind and through hole applications
Emuge Pipe Tap | Form C Reduced Shank | Series: Rekord KEG R15-VA AW483000 | Measurement System: Imperial | 1-11-1/2 Size | NPT Thread Standard | 15 deg Helix Angle | Modified Bottoming Chamfer | 1-3/4 in Thread Length | 7 in Overall Length | 5 Flutes | Right Hand Cutting Direction | 1-1/8 in Shank Diameter | 0.843 in Square | HSS-E | Bright
