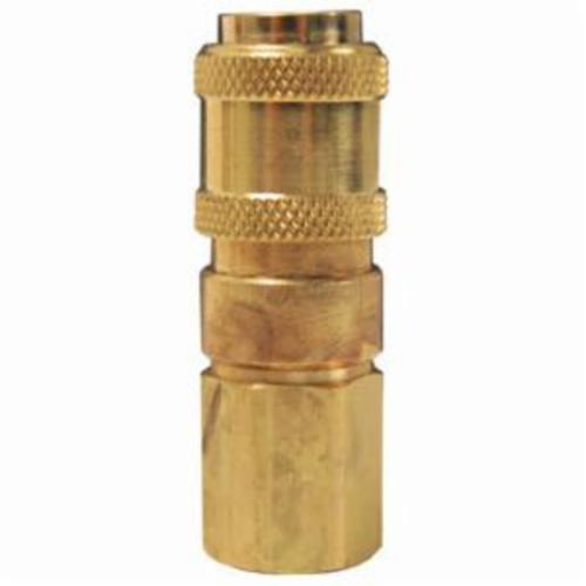

Dixon A Quick Connect Coupling, 1/8 in, FNPT, 500 psi, Brass, Domestic

• Rated pressure for connected brass coupler and brass plug: 500 psi (35 bar) maximum working and 15,500 psi (1,070 bar) burst
• Machined components are manufactured using solid bar stock
• 1/8 in body
• 7 cfm at 100 psi flow
• Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
• Couplers are constructed of brass with steel valve as standard
• Steel componentry is plated using ROHS compliant trivalent chrome
• Pressure rating given at ambient temperature 70 deg F (21 deg C)
• Compatibility and interchange data: Proprietary Astronautics
• Warning: this product contains a chemical known to the State of California to cause birth defects or other reproductive harm
• Do not use in connection with drinking water
• Wash hands after handling

Application:
A series couplers are intended for use in compressed air service where the convenience of one hand operation and a compact profile is desired

Dixon Quick Connect Coupling | Series: A | 1/8 in Nominal Size | FNPT | 1/2 in Hex | 1.68 in Length | 500 psi | Brass | 0.64 in OD | Domestic
