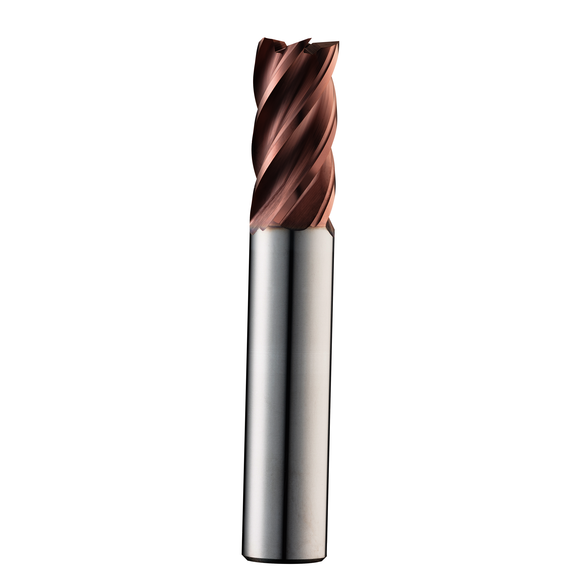

SGS 37006 Z5S Fractional High Performance Square End End Mill, 3/16 in Dia Cutter, 1/2 in Length of Cut, 5 Flutes, 3/16 in Dia Shank, 2 in OAL, TM Coated
SGS 37006
$36.92
/ EA
Out of Stock
- Number of Flutes: 5
- Material: Solid Carbide
- Finish/Coating: TM Coated
- Shank Diameter: 3/16 in
- Shank Diameter - Decimal: 0.1875 in
- Shank Diameter - Fractional: 3/16 in
- Shank Diameter - Metric: 4.762 mm
- Cutting Direction: Right Hand
- Helix Angle: 37 deg
- Finish: Ti-Namite-M
- Length of Cut - Fractional: 1/2 in
- Overall Length - Metric: 2 mm
- Series: Z5S
- Shank Length - Fractional: 1-1/2 in
- Shank Type: Straight
- Type: Fractional High Performance Square End
- Flute Type: Spiral
- Cutter Diameter - Fractional: 3/16 in
- Diameter - Decimal: 0.1875 in
- The New Z-Carb HPR five flute roughing end mills are ideal for achieving high material removal rates (MRR) and a finish of 80 RMS or better on most materials
- The specialized five flute
Application: Aerospace Structural Components, Medical Implants, Automotive and Heavy Transportation, Energy and Power Generation, Castings and Forgings and General Engineering
SGS® End Mill | Fractional High Performance Square End | Series: Z5S | 3/16 in Cutter Dia | 2 in Overall Length | 1/2 in Maximum Depth of Cut | 5 Flutes | Spiral Flute | 3/16 in Shank Dia | Right Hand Cutting | 37 deg Helix Angle | 1-1/2 in Shank Length | Carbide | TM Coated
