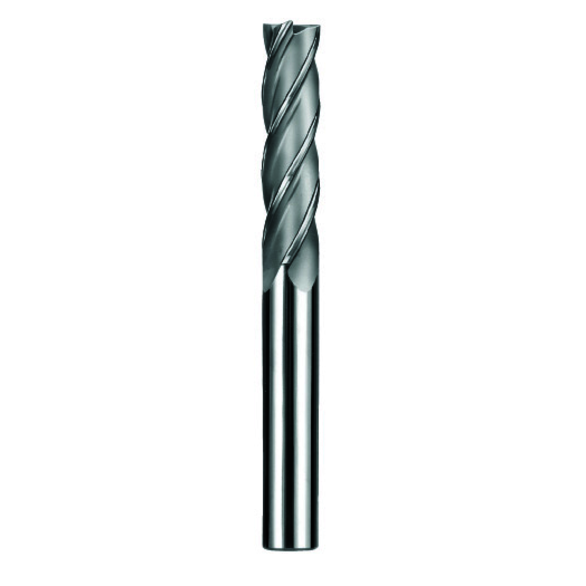

SGS 33103 L1S Fractional Long Length Square End End Mill, 1/4 in Dia Cutter, 1-1/8 in Length of Cut, 4 Flutes, 1/4 in Dia Shank, 3 in OAL, Uncoated
SGS 33103
$25.49
/ EA
Out of Stock
- Number of Flutes: 4
- Material: Micrograin Solid Carbide
- Finish/Coating: Uncoated
- Shank Diameter: 1/4 in
- Shank Diameter - Decimal: 0.25 in
- Shank Diameter - Fractional: 1/4 in
- Shank Diameter - Metric: 6.35 mm
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Cutter Diameter - Fractional: 1/4 in
- Finish: Uncoated
- Length of Cut - Fractional: 1-1/8 in
- Overall Length - Metric: 3 mm
- Series: L1S
- Shank Length - Fractional: 1-7/8 in
- Type: Fractional Long Length Square End
- Flute Type: Spiral
- Diameter - Decimal: 0.25 in
- Shank Type: Straight
SGS general purpose end mills are manufactured to the highest standards on state of the art CNC equipment. Held to the same standard as high performance product, the SGS general purpose end mill delivers consistent dependable performance beyond a typical general purpose end mill.
- Solid carbide provides better rigidity than high speed steel
- It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials
- Lab inspected and certified raw material
- Precision CNC ground to industry leading specifications
- Consistent quality and predictable performance
- Positive rack angle
- External coolant
- Applicable materials: steels, stainless steels, cast iron, high temp alloys, titanium, non-ferrous and plastic/composites
- +0.000/-0.002 in D1, H6 D2 tolerances
Application: Aerospace, Medical, Power Generation, Automotive, Mold & Die, Castings & Foundries and General Engineering
SGS® End Mill | Center Cutting General Purpose Long Length Single End Square End | Series: 1L | 1/4 in Cutter Dia | 3 in Overall Length | 1-1/8 in Maximum Depth of Cut | 4 Flutes | Spiral Flute | 1/4 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Straight Shank | Micrograin Solid Carbide | Uncoated
