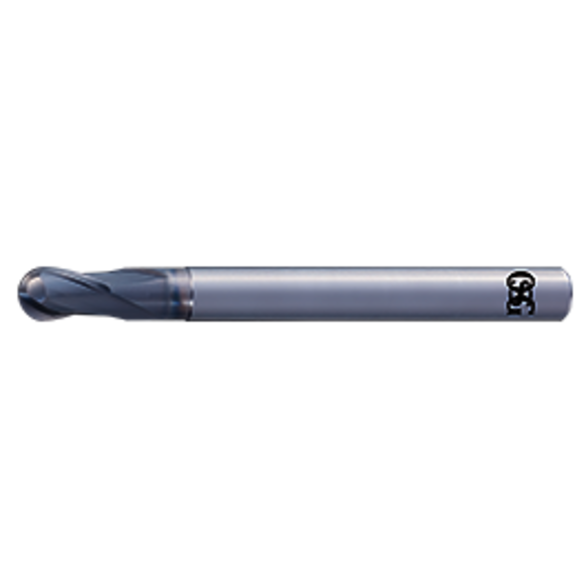

OSG 84100523 1/4 in Mill Dia, 0.374 in LOC, 3 in OAL, 2 Flutes, Carbide, Durorey Coated, Ball End Mill
OSG 84100523
$65.92
/ EA
Out of Stock
- Number of Flutes: 2
- Length of Cut: 0.374 mm
- Material: Carbide
- Overall Length: 3 in
- Shank Diameter: 1/4 in
- Shank Diameter - Fractional: 1/4 in
- Helix Angle: 25 deg
- Cutter Diameter: 1/4 in
- Cutting Direction: Right Hand
- Finish: Durorey Coated
- Length of Cut - Decimal: 0.374 mm
- Series: 8410
- Shank Type: Shrink Fit
- Cutter Diameter - Fractional: 1/4 in
2-Flute High-Precision Finishing Carbide Ball End Mill For High-Hardness Steels
- Variable Negative Spiral Gash
- Controls Chipping While Securing Cutting Quality By Making The Negative Angle Weaker Near The Outer Periphery; Chipping Resistance Is Enhanced In Combination With The Weaker Helix Angle Specification
- Superior Ball R Precision
- Secures Stable R Accuracy Across 180°
- Thickness At Center
- Thickening Of The Center Core To Prevent Deformation Of The Ball Tip And Improve Control Of Chipping
- Superior Shank Accuracy
- Supports H4 Tolerance (0/-0.004)
- Ideal For Shrink Fit Holders
- Lineup Of Short-Shank Type Suitable For Shrink Fit Holders
- Smooth Surface Treatment
- Improves Surface Accuracy By Smoothening Coating Surface
Application:High-Hardness Steels (Up To 70 Hrc)
Osg 84100523 Mill Diameter 1/4 In | Number Of Flutes 2 | Length Of Cut 1/4 In | Carbide | 3 In | Ball End Mill
