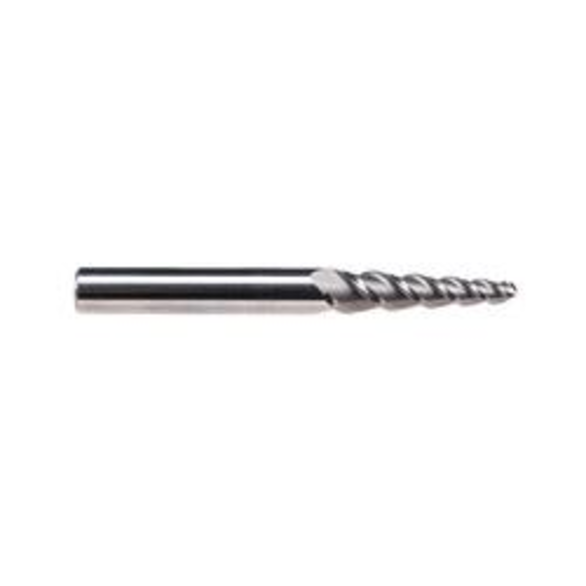

Emuge 3440.03015A Ball End Mills 1.5mm Milling Dia, 20mm LOC, 62mm OAL, 3 Flutes, Carbide
EMUGE 3440.03015A
$147.79
/ EA
Out of Stock
- Number of Flutes: 3
- Material: Carbide
- Shank Diameter: 6 mm
- Shank Diameter - Metric: 6 mm
- Finish/Coating: Bright
- Helix Angle: 45 deg
- Cutter Diameter - Metric: 1.5 mm
- Cutting Direction: Right Hand
- Flute Type: 3 deg Taper/Spiral
- Length of Cut - Metric: 20 mm
- Overall Length - Metric: 62 mm
- Series: Turbine Program 3440
- Shank Type: Cylindrical
- Turbine tools from Emuge are tailored specifically for the requirements of materials and component designs in the aircraft and turbine industry, In addition, these tools can be used in the die and mold industry as well
- 3 deg taper flute construction
- Sub-micro grain carbide substrate
Standards/Approvals: DIN 6535 HA|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For finishing applications
Emuge Ball Nose End Mill | Tapered | Series: Turbine Program 3440 | 1.5 mm Diameter Cutter | 62 mm Overall Length | 20 mm Maximum Depth of Cut | 3 Flutes | 3 deg Taper/Spiral Flute | 6 mm Shank Diameter | Right Hand Cutting Direction | 45 deg Helix Angle | Cylindrical Shank | Carbide | Bright
