Mitutoyo 64AAA271 3-Wire Metric Holder and Wire Set, +/-0.00001 in Dia, +/-0.00001 in Roundness Tolerance, HRC 59-64, 2.5 mm Pitch, 0.05683 in/1.4434 mm Dia Thread, For Use With 1/4 in Dia Anvil/Spindle Micrometer

MITAME 64AAA271
$267.00 / EA
Out of Stock

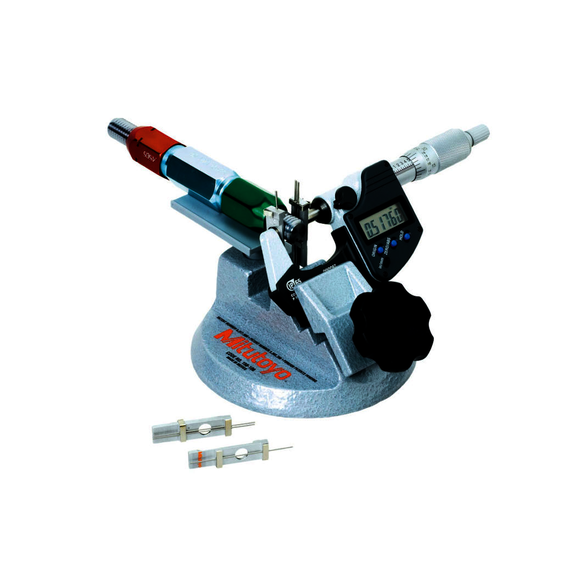

Image for MITAME 64AAA271
  • Fast and accurate method of thread measuring available for use with Micrometer
  • Compatible with micrometers with anvil/spindle .250in diameter

Application:

  • Measure set of thread plug gages and working thread plug gages.
  • Monitor the wear on working thread plug gages.
  • Monitor and control pitch diameter variation during thread fabrication.
  • Reduce measurement time to a fraction of the time normally taken using the traditional three wire method.
  • Use in conjunction with go/no-go thread ring gages to control thread size to the most demanding specifications.
  • Determine out of roundness and taper that may exist in threaded parts.
  • Applications for preplating and post plating thread measurement.

    • Mitutoyo 64AAA271 2.500 mm Pitch | 0.05683 in Nominal Best Wire Diameter | Thread Pitch Diameter Measuring Wire
