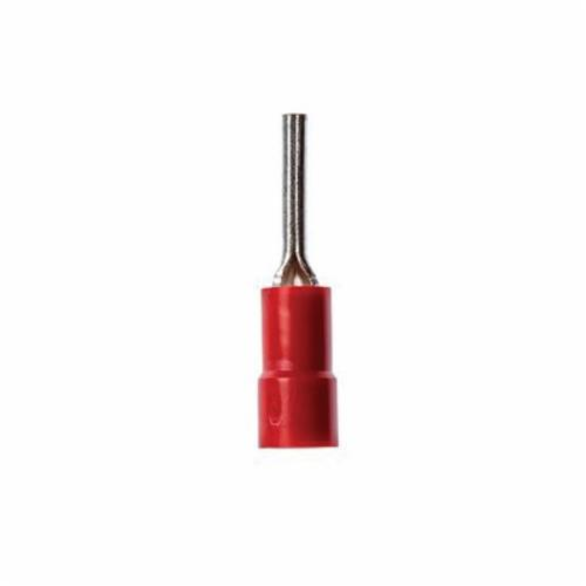

Scotchlok MVU18-47PX-A Butted Seam Barrel Pin Terminal, 22 to 18 AWG, 0.075 in Dia x 0.47 in L Pin, Copper, Red
3M 7100054896
$1.07
/ Order multiples of 500 EA
Out of Stock
- Material: Copper
- Color: Red
- Conductor Size: 22 to 18 AWG
- Overall Length: 0.9 in
- Pin Diameter: 0.075 in
- Pin Length: 0.47 in
- Specifications: 0.15 in OD Barrel
- Temperature Rating: 167 deg F
- Type: Butted Seam Barrel
- Voltage Rating: 600 to 1000 V
Scotchlok Pin Terminal, Butted Seam Barrel, 22 to 18 AWG Conductor, 0.075 in Pin Dia, 0.47 in Pin Length, 600 to 1000 V, 0.15 in OD Barrel, Copper, 167 deg F, 0.9 in Overall Length, Red
- Red vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Funnel-designed, seamless brass sleeve offers easy insertion of wires
- Provides quick connection for set screws or clamps that are used to make electrical contact
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- 600 V rated for building wire and 1000 V for signs, fixtures or luminaires
- Vinyl insulation
