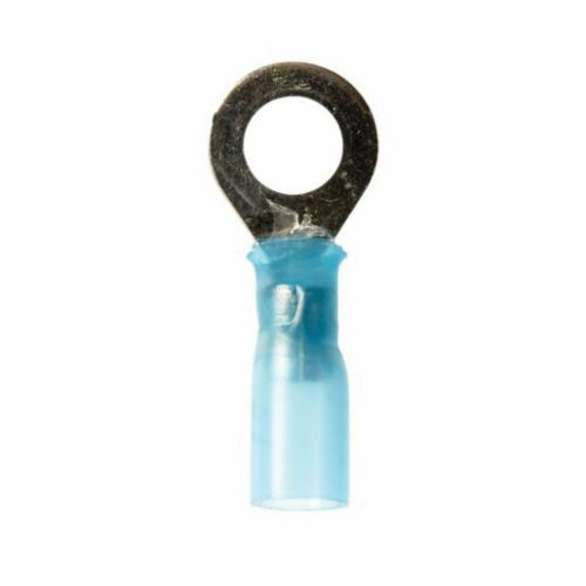

Scotchlok 054007-06335 Standard Ring Tongue Terminal, 16 to 14 AWG, 1.1 in L, 0.09 in ID x 0.25 in L Brazed Barrel
3M 7100164277
$0.87
/ Order multiples of 250 EA
Out of Stock
- Type: Standard
- Length: 1.1 in
- Material: ETP Copper
- Color: Blue
- Barrel Type: 0.09 in ID x 0.25 in L Brazed
- Conductor Size: 16 to 14 AWG
- Conductor Type: Heat Shrink
- Dimensions: 0.56 in W x 0.03 in THK
- Stud Size: 3/8 in
- Voltage Rating: 600 - 1000 V
Scotchlok Ring Tongue Terminal, Standard, Heat Shrink Conductor, 16 to 14 AWG Conductor, 3/8 in Stud, 1.1 in L, 0.09 in ID x 0.25 in L Brazed Barrel, 600 - 1000 V, ETP Copper, Blue, 0.56 in W x 0.03 in THK
- Corrosion resistance - the adhesive lined heat shrink material, when properly crimped and shrunk, provides a seal that is resistant to water, salt, steam and other related contaminants
- Improved mechanical performance - the adhesive lined heat shrink tubing adheres, when shrunk, to both the connector and the wire insulation, providing improved pullout strength and strain relief
- Durable heat shrink tubing - tough heat shrink tubing effectively resists abrasion, scoring, cut through and the effects of long term aging
- The standard style of tongue
- The safest and most reliable 3M terminal
- It cannot be removed unless mounting screw is removed
- Crimp connection, vinyl insulated
