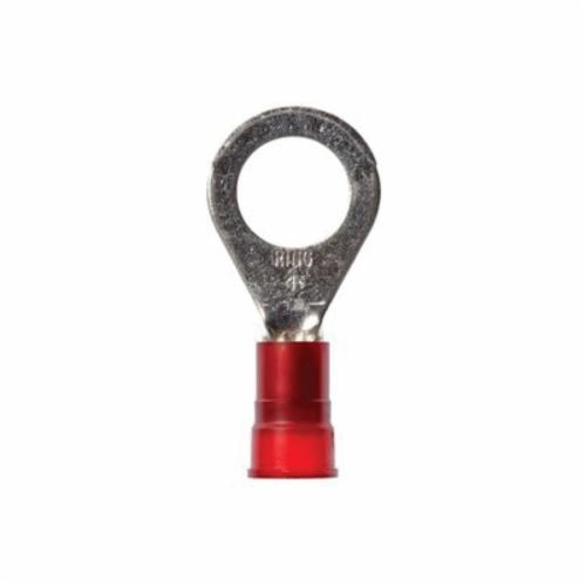

Scotchlok 051128-58635 Standard Ring Tongue Terminal, 8 AWG, 1.26 in L, Brazed Barrel, Copper Contact, Nylon Insulation
3M 7100011401
$4.85
/ Order multiples of 100 EA
Out of Stock
- Type: Standard
- Length: 1.26 in
- Material: Copper Contact, Nylon Insulation
- Color: Red
- Barrel Size: 0.175 in ID
- Barrel Type: Brazed
- Conductor Size: 8 AWG
- Dimensions: 0.47 in W
- Finish: Electrolytic Tin Plated
- Stud Size: 1/4 in
- Temperature Rating: -40 to 221 deg F
- Voltage Rating: 600 V
- Warranty: Limited
Scotchlok Ring Tongue Terminal, Standard, 8 AWG Conductor, 1/4 in Stud, 1.26 in L, Brazed Barrel, 0.175 in ID Barrel, 600 V, -40 to 221 deg F, Copper Contact, Nylon Insulation, Electrolytic Tin Plated, Red, 0.47 in W
- Red nylon-insulated, brazed seam barrel ensures a secure fit and offers reliable performance
- Flared portion of the nylon sleeve offers easy insertion of wires
- Standard style ring tongue fits around the stud
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- 0.4 in clearance
- Crimp connection
