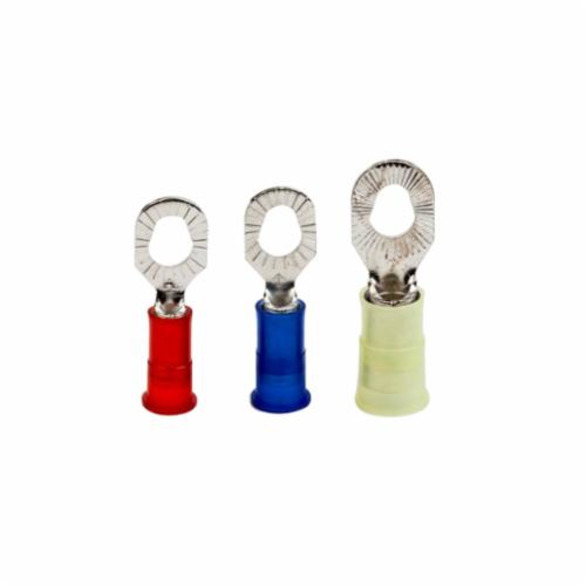

Scotchlok 054007-01851 Multi-Stud Ring Tongue Terminal, 16 to 14 AWG, 1.01 in L, 0.09 in ID x 0.25 in L Brazed Barrel
3M 7000132259
$0.49
/ Order multiples of 1000 EA
Out of Stock
- Type: Multi-Stud
- Length: 1.01 in
- Material: ETP Copper
- Color: Blue
- Barrel Type: 0.09 in ID x 0.25 in L Brazed
- Conductor Size: 16 to 14 AWG
- Dimensions: 0.34 in W x 0.03 in THK
- Stud Size: NO 6 - 10
- Temperature Rating: -40 to 221 deg F
- Voltage Rating: 600 - 1000 V
Scotchlok Ring Tongue Terminal, Multi-Stud, 16 to 14 AWG Conductor, NO 6 - 10 Stud, 1.01 in L, 0.09 in ID x 0.25 in L Brazed Barrel, 600 - 1000 V, -40 to 221 deg F, ETP Copper, Blue, 0.34 in W x 0.03 in THK
- Similar to the standard ring tongue, multi-stud ring tongues can be used with multiple stud sizes
- The safest and most reliable 3M terminal
- It cannot be removed unless mounting screw is removed
- Crimp connection, vinyl insulated
