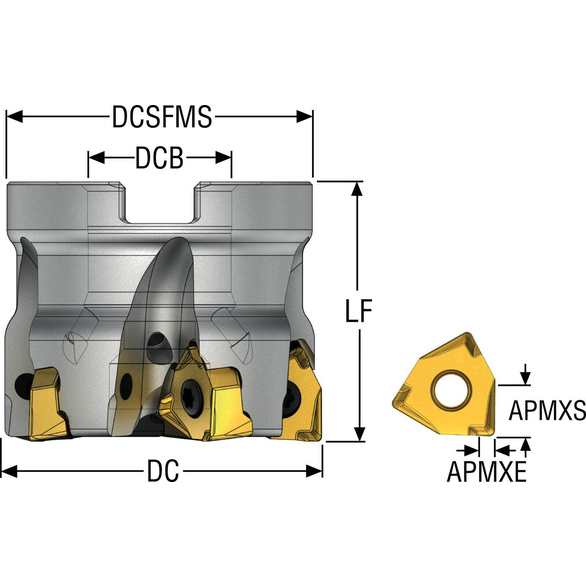

Seco 02642872 Square 6™ Double Sided Insert Indexable Shoulder Mill, ANSI Code: R220.96-02.00-08-5A, 50.7 mm Dia Cutting, Arbor Shank, Right Hand Cutting, 90 deg Lead Angle, 7.5 mm Max Depth of Cut
- Cutting Diameter: 2 in
- Cutting Diameter - Decimal: 2 in
- Cutting Diameter - Metric: 50.7 mm
- Shank Type: Arbor
- Shank Diameter: 47 mm
- Shank Diameter - Metric: 47 mm
- Lead Angle: 90 deg
- Series: Square 6
- Through Coolant: Through Coolant
- Coolant Through: Yes
- Cutter Style: R220.96
- Cutting Direction: Right Hand
- Insert Compatibility: XNEX 0806..
- Insert Holding Method: Screw
- Length of Cut: 0.625 in
- Material: Steel
- Maximum Depth of Cut: 7.5 in
- Maximum RPM: 10600 RPM
- Number of Cutter Inserts: 5
- Number of Flutes: 5
- Number of Inserts: 5
- Overall Length: 40 mm
- Overall Length - Metric: 40 mm
- Part Number: 43722
Seco's line of Square 6™ shoulder milling cutters answers the need for added economy in square shoulder milling. This unique square shoulder milling cutter uses trigonal inserts with three cutting edges on each side - 6 total cutting edges to lower the cost per cutting edge. Inserts lock into place via a strong center screw placed in the same direction as cutting forces and wiper flats optimize surface finishes. The 90 deg setting angle ensures a true 90 deg square in one milling operation, eliminating the need for secondary operations and saving valuable production time and money.
Seco Indexable Shoulder Mill | Double Sided Insert | Series: Square 6 | 50.7 mm Diameter Cutting | 40 mm Overall Length | 7.5 mm Maximum Depth of Cut | 5 Inserts | Insert Compatibility: XNEX08.. | 47 mm Shank Diameter | Arbor Shank | Right Hand Cutting Direction | ANSI Code: R220.96-02.00-08-5A | ISO Code: R220.96-02.00-08-5A | 90 deg Lead Angle | Through Coolant: Yes | Steel
