Tungaloy

Tungaloy 6865363 VCMT, 080202, PSF, Turning Insert

TUNGAL 6865363
$18.77 / Order multiples of 10 EA
Out of Stock

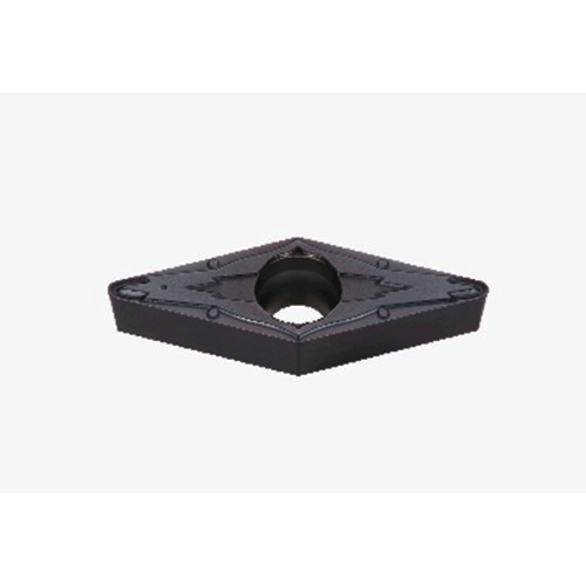

Image for TUNGAL 6865363
  • Insert Style: VCMT
  • Insert Size: 080202
  • Material: Carbide
  • Inscribed Circle: 4.76 mm
  • Corner Radius: 0.0078 in
  • Chipbreaker: PSF
  • Clearance Angle: 7 deg
  • Coating: TiAlN
  • Coating Process: PVD
  • Cutting Direction: Neutral
  • Cutting Edge Length: 0.327 in
  • Hole Diameter: 2.30 mm
  • Hole Diameter - Metric: 2.30 mm
  • Included Angle: 35 deg
  • Inscribed Circle Size: 0.187 in
  • Insert Hand: Neutral
  • Insert Thickness: 0.094 in
  • ISO Number: VCMT 630.5 PSF
  • Manufacturer Grade: AH725
  • Maximum Depth of Cut: 0.0197 in
  • Overall Length: 8.30 mm
  • Part Number: 6865363
  • Rake: Positive
  • Relief Angle: 7 Degree

Positive 7deg relief angle, M class, 35deg rhombic insert, for finishing

Standard/Approvals:AH725, VCMT 630.5 PSF

Application:

  • External turning

    • Tungaloy 6865363 VCMT | 080202 | PSF | AH725 | Carbide | Turning Insert
