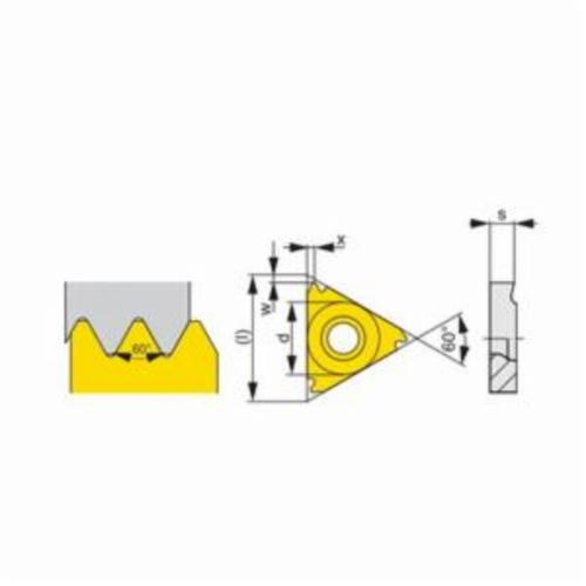

Pramet 6755507 Negative Partial Profile Threading Insert Without Chipbreaker, Triangle, TN Insert, 0.5 to 3 mm
PREDOR 6755507
$22.32
/ EA
Out of Stock
- Insert Style: TN
- Material Grade: T8030, H/K/M/N/P/S
- Finish: CVD
- Included Angle: 60 deg
- Inscribed Circle Size: 3/8 in
- Length: 0.65 in
- Pitch: 0.5 to 3 mm
- Shape: Triangle
- Thickness: 0.137 in
- Thread Type: 60 deg Metric External
- Type: Negative;Partial Profile
- T8030 - Sub-micron substrate with a relatively high cobalt content
- Lower internal coating tension with higher hardness
- Highly versatile, wide-ranging material
- Especially for inserts for thread turning
- Medium cutting speeds
- Good operative reliability
- Impaired machining conditions
- Gold color
- 0 deg clearance
- 0.65 in L cutting edge
Pramet Threading Insert| Negative Partial Profile| TN Insert| Triangle| 60 deg Metric External| 0.5 to 3 mm Pitch| 3/8 in Inscribed Circle| 0.137 in Thickness| 0.65 in Length| ISO Code: TN 16ERAG60| 60 deg Included Angle| Manufacturer's Grade: T8030| Right Hand| CVD Coated| Material Grade: H/K/M/N/P/S
