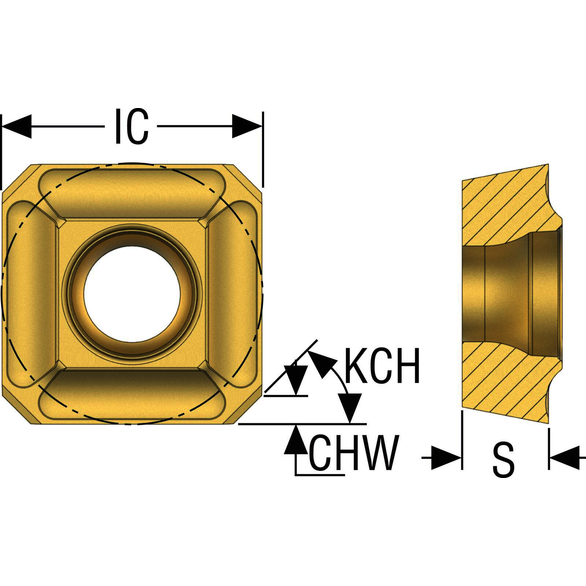

Seco 02505933 Indexable Drill Insert, ANSI Code: SPMX090304-75 F40M, Squared Shape, Material Grade: C2, C3, C4, 090304 Insert, SPMX Insert, 3.2 mm THK, 9.5 mm Inscribed Circle, For Use On Super Alloys, Manufacturer's Grade: F40M
SECO 02505933
$19.33
/ Order multiples of 10 EA
Out of Stock
- Chipbreaker: 75
- Coating: TiAlN/TiN
- Coating Process: PVD
- Corner Radius: 0.4 in
- Finish/Coating: PVD-TiAlN+TiN Coated
- Hole Diameter - Decimal: 0.0150 in
- Included Angle: 90 deg
- Inscribed Circle: 0.3750 in
- Inscribed Circle - Metric: 9.5 mm
- Insert Size: 90304
- Insert Style: SPMX
- ISO Number: SPMX090304-75
- Manufacturer Grade: F40M
- Manufacturer's Grade: F40M
- Material: Carbide
- Material Grade: C2, C3, C4
- Part Number: 23979
- Primary Workpiece Material: Universal
- Rake: Positive
- Relief Angle: 11 Degree
- Shape: Squared
- Thickness: 3.2 in
- PVD-coated grade for fi ne to medium rough milling
- First choice for milling with small feeds and/or low cutting speeds
- Excellent for milling when there is a risk of vibrations and when coolant is used
For machining super alloys
Seco Indexable Drill Insert | SPMX Insert | 090304 Insert | Square Shape | 9.5 mm Inscribed Circle | 3.2 mm Thickness | 9.5 mm Length | 75 Chipbreaker | 0.4 mm Corner Radius | Manufacturer's Grade: F40M | 90 deg Included Angle | ANSI Code: SPMX090304-75 F40M | For Use On: Super Alloys | Carbide | PVD-TiAlN+TiN Coated | Material Grade: C2 | C3 | C4
