Walter Tools

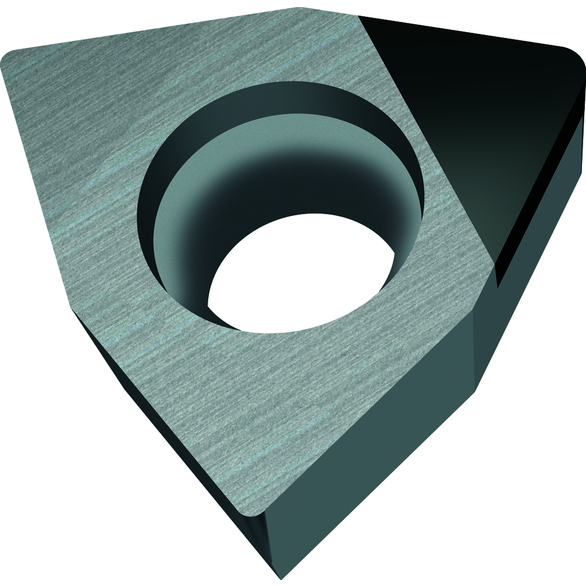

Walter USA 5043147 WCMW, 1.2(1)1, WCD10, Boring Insert
WALTER 5043147
$114.84
/ EA
Out of Stock
- Insert Style: WCMW
- Insert Size: 1.2(1)1
- Material: Solid Carbide
- Inscribed Circle: 5/8 in
- Thickness: 1.590 mm
- Corner Radius: 0.400 mm
- Chipbreaker: A27
- Coating: Uncoated
- Cutting Direction: Neutral
- Included Angle: 80 Degree
- Insert Hand: Neutral
- Manufacturer Grade: WCD10
- Part Number: 5043147
- Rake: Positive
- Relief Angle: 7 Degree
- Series: Tiger-tec
- Shape: Trigon
- Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times
- Mechanical post-treatment - unique residual stress rate, increased process reliability
- Large, universal chip breaking area and longer tool life for ISO P geometries
- Ground seating surface after coating for improved process reliability when working with interrupted cuts
- Silver flank face indicator layer for extremely easy wear detection
- Micro edge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation
- Extremely smooth rake face for excellent tribochemical wear resistance
Standard/Approvals:WCD10, WCMW020104 WCD10
Walter USA 5043147 WCMW | 1.2(1)1 | WCD10 | 80 Degree | Trigon | Boring Insert
