SUMITOMO

Sumitomo Electric Carbide 5L00647 0.6500 in to 0.6890 in, 1.5XD, Replaceable-Tip Drill

SUMI 5L00647
$340.06 / EA
Out of Stock

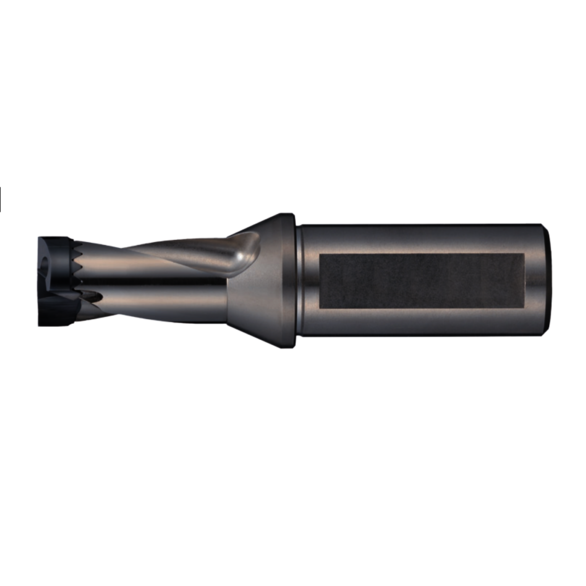

Image for SUMI 5L00647
  • Maximum Drill Depth: 36.40 mm
  • Shank Diameter - Decimal: 0.7874 in
  • Shank Diameter - Metric: 20.00 mm
  • Insert Style: SMDT
  • Flute Length: 36.40 mm
  • Overall Length: 101.40 mm
  • Series: SMD
  • Shank Length: 1.9685 in
  • Shank Type: Whistle Notch
  • Available in metric and inch diameters ranging from 0.4688” - 1.6535” (42.0mm)
  • Available in 3X, 5X, 8X & now 1.5X & 12X diameter ha bodies that can accept multiple diameters
  • Three styles of drill tips to maximize performance
  • SMDT-MTL - standard edge preparation for applications
  • SMD carbide tips have Sumitomo’s patented wear resistant DEXTM coatings
  • Ground serrations on back of drill tip allow for precise assembly and superior repeatability
  • Drill tips are capable of being reground
  • Coolant through drill bodies

Standard/Approvals:SMDH170S

Sumitomo Electric Carbide 5L00647 0.6500 in to | 0.6890 in | 1.5XD | 36.40 mm | 0.7874 in | Replaceable-Tip Drill
