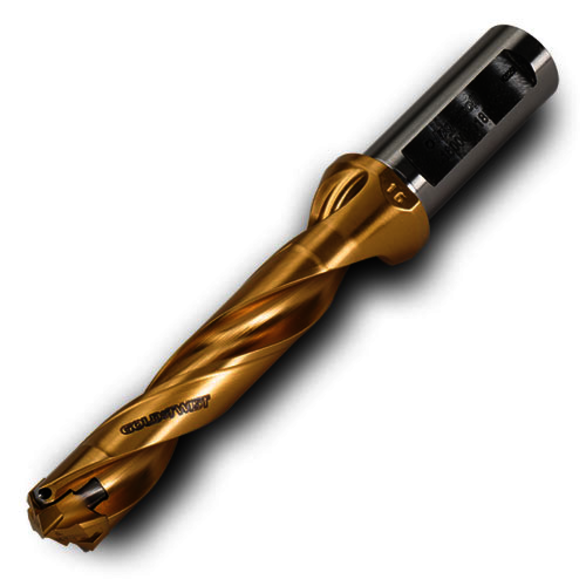

Ingersoll Cutting Tools 6181210 0.5118 (13.0 mm) to, 0.5472 (13.9 mm), 1.5XD, Replaceable-Tip Drill

INGCUT 6181210
$265.00 / EA
Out of Stock
Ingersoll Cutting Tools 6181210 0.5118 (13.0 mm) to, 0.5472 (13.9 mm), 1.5XD, Replaceable-Tip Drill
  • Shank Diameter - Decimal: 0.625 in
  • Insert Style: TD
  • Coolant Through: Yes
  • Depth Ratio: 1.5xD
  • Diameter - Decimal: 0.5118 in
  • Diameter - Metric: 12.99 mm
  • Diameter Range: 0.5118-0.5472 in
  • Extension Length: 1.46 in
  • Flute Length: 0.79 in
  • Overall Length: 3.35 in
  • Series: TD 1.5:1 Bodies Inch Universal Shank
  • Shank Length: 1.89 in
  • Shank Type: Universal
  • Replaceable Tipped Drill Bodies L:D Ratio - 1.5:1
  • Coolant Through
  • Holds +.002/-.000 on Hole Diameter

Applications:

  • Coolant-Thru
  • Drilling

    • Ingersoll Cutting Tools 6181210 0.5118 (13.0 mm) to | 0.5472 (13.9 mm) | 1.5XD | 0.625 | Replaceable-Tip Drill
