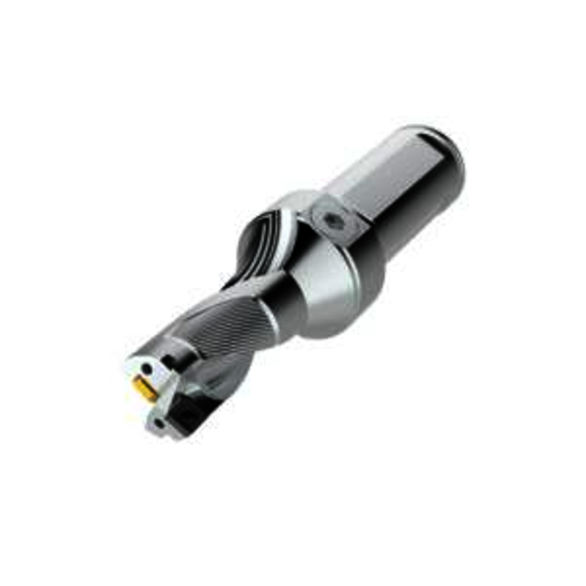

Seco 03080325 Perfomax™ SD524 Indexable Insert Drill, 1.687 in Drill, 1.969 in Modular Connection, 1-1/2 in Dia Shank, 4XD Drill Depth by Dia Ratio, SPGX/SCGX Insert, 10.556 in OAL, 6-3/4 in D Max Drill
- Drill Style: SD524
- Drill Diameter - Decimal: 1.6870 in
- Drill Diameter - Metric: 42.850 mm
- Maximum Drill Depth: 171.500 mm
- Shank Diameter: 1 1/2 in
- Shank Diameter - Fractional: 1 1/2 in
- Shank Diameter - Metric: 38.100 mm
- Modular Connection Size: 1.969
- Cutting Direction: Right Hand
- Body Length: 201.500 mm
- Collar Diameter: 50.000 mm
- Coolant Through: Yes
- Diameter: 1.687 in
- Flute Length: 176.500 mm
- Insert Compatibility: SPGX12T3..
- Insert Compatibility (Outside or Peripheral): SCGX 120408
- Maximum Drill Depth - Fractional: 6-3/4 in
- Maximum Drill Diameter - Metric: 42.850 mm
- Number of Drill Inserts: 2
- Overall Length - Metric: 10.556 mm
- Overall Length/Projection: 268.100 mm
- Part Number: 03080325
- Shank Length: 66.700 mm
- Shank Length - Fractional: 2-5/8 in
- Shank Type: ISO 9766
- Through Coolant: Through Coolant
- Toolholder Material: Steel
Perfomax™ is a long standing, proven range of indexable insert drills that offers an economical solution when it comes to productively drilling holes. Reliable and trustworthy, the strong, square inserts each offer four cutting edges. They can be used with most modern insert grades and coatings. The drill body design features a unique chip flute design, through coolant holes on all sizes and a low friction coating to optimize chip evacuation. The Perfomax™ drill body design is strong and sturdy, capable of handling the highest productivity and offers strong performance in unstable applications.
- Effective chip control for long chipping ductile materials
- Fast and efficient chip evacuation
- Higher cutting parameters for increased drilling output
- Longer tool life gives reduced tool cost
- Exceptional process predictability and reliability
- Better hole tolerance
For cutting and machining
Seco Indexable Insert Drill | Series: Perfomax SD524 | 1.687 in Drill | 1-1/2 in Shank Diameter | 2-5/8 in Shank Length | ISO 9766 Shank | 1.969 in Modular Connection Size | SPGX/SCGX Insert | 6-3/4 in Maximum Drill Depth | 10.556 in Overall Length | 1.687 in Diameter | 4XD Drill Depth by Diameter Ratio | 2 Drill Inserts | Insert Compatibility: SPGX12T3 Center | SCGX120408 Peripheral | 6.947 in Flute Length | Yes Through Coolant
