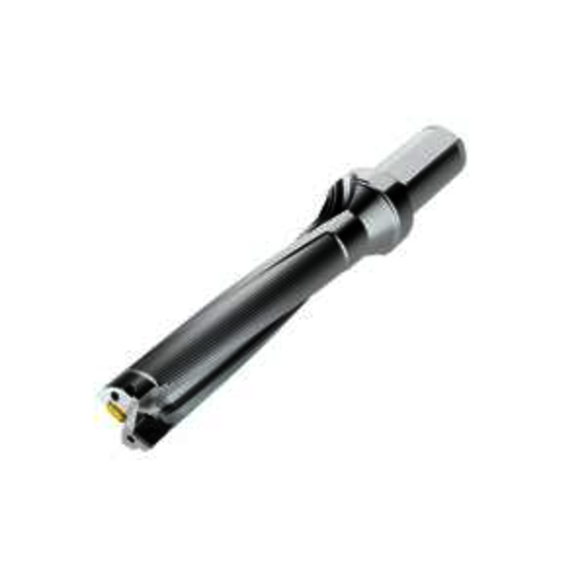

Seco 03079573 Perfomax™ SD525 Indexable Insert Drill, 1-1/4 in Drill, 1.969 in Modular Connection, 1-1/2 in Dia Shank, 5XD Drill Depth by Dia Ratio, SPGX/SCGX Insert, 10.056 in OAL, 6-1/4 in D Max Drill
SECO 03079573
$993.00
/ EA
Out of Stock
- Drill Diameter - Fractional: 1-1/4 in
- Maximum Drill Depth: 6-1/4 in
- Shank Diameter: 1 1/2 in
- Shank Diameter - Fractional: 1 1/2 in
- Modular Connection Size: 1.969
- Cutting Direction: Right Hand
- Coolant Through: Yes
- Flute Length: 6.4470 in
- Insert Compatibility: SPGX0903 Center, SCGX09T308 Peripheral
- Insert Compatibility (Outside or Peripheral): SPGX11T3 Center, SCGX09T308 Peripheral
- Maximum Drill Depth - Fractional: 6-1/4 in
- Maximum Drill Diameter - Fractional: 1-1/4 in
- Number of Drill Inserts: 2
- Overall Length - Metric: 10.056 mm
- Overall Length/Projection: 10.0560 in
- Part Number: 03079573
- Series: Perfomax SD523
- Shank Length: 2-5/8 in
- Shank Length - Fractional: 2-5/8 in
- Shank Type: ISO 9766
- Through Coolant: Non-Through Coolant
- Toolholder Material: Solid Carbide
- Diameter - Fractional: 1-1/4 in
SD525-1250-625-1500R7 COOLANT THRU 306-0
