Ingersoll Cutting Tools

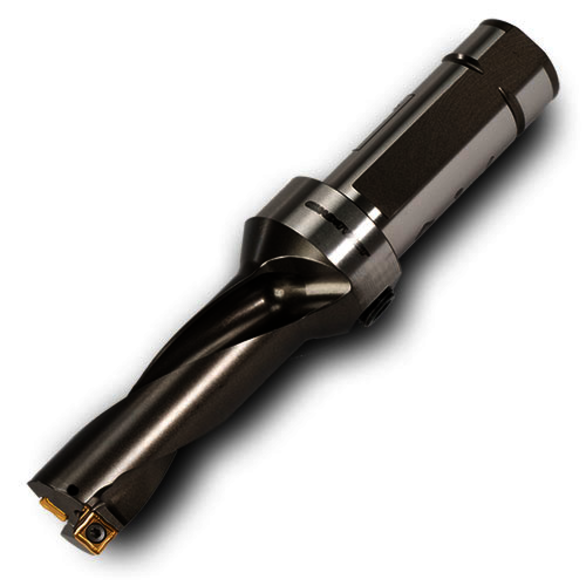

INGCUT 6108560 1.25 Dia Square Indexable Drill

INGCUT 6108560
$690.00 / EA
Out of Stock
INGCUT 6108560 1.25 Dia Square Indexable Drill
  • Shank Diameter - Decimal: 1.25 in
  • Coolant Through: Yes
  • Depth Ratio: 3xD
  • Extension Length: 5.43 in
  • Insert Style: QR
  • Maximum Hole Size: 1.32 in
  • Overall Length: 8.58 in
  • Radial Shift: 0.035 in
  • Series: QR
  • Shank Length: 3.16 in
  • Shank Type: Universal
  • Shape: Square
  • Style: SOMT
  • Diameter - Fractional: 1-1/4 in
  • Diameter - Decimal: 1.25 in
  • Diameter - Metric: 31.75 mm
  • Square Insert Indexable Drills Inch L:D Ratio - 3:1
  • For Lathe Use: Brass Coolant Fitting Should Be Ordered Separately
  • Extended Length Shank For Maximum Clamping Surface
  • Ideal For Lathe Applications

Applications:

  • Coolant-Thru
  • Drilling

    • Ingersoll Cutting Tools 6108560 | 1.320 | 3XD | 1.250 | Replaceable-Tip Drill
