Ingersoll Cutting Tools

INGCUT 3204685 1.65 Dia 0.906 H Drilling Chamfer Ring

INGCUT 3204685
$282.00 / EA
Out of Stock

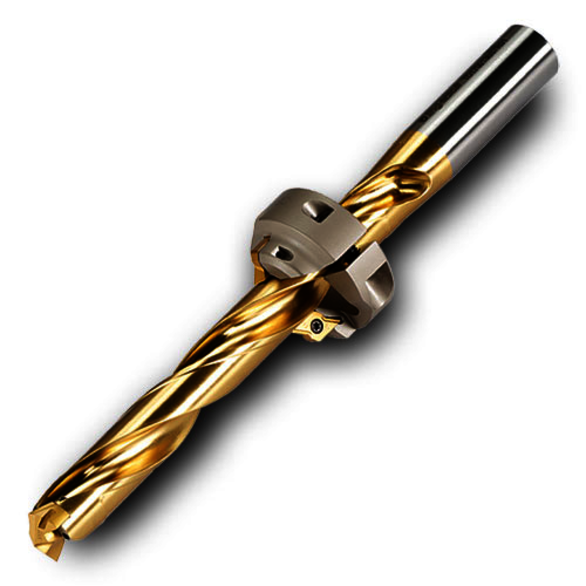

INGCUT 3204685 1.65 Dia 0.906 H Drilling Chamfer Ring
  • Series: TD170
  • Chamfer Angle: 45 Degree
  • Diameter - Decimal: 1.65 in
  • Diameter - Metric: 41.91 mm
  • Height: 0.906 in
  • Maximum Chamfer Size: 0.118 in x 45 deg
  • Series Compatibility: TD170
  • Combines drill & chamfer in one operation Fits Ø13-25 mm, 3xD Bodies
  • Fits Ø10-25 mm, 5xD & 8xD Bodies
  • Fits Ø11-25 mm, 12xD Bodies
  • 2 effective, no need to slow feed rate when chamfering
  • Max. chamfer .118" × 45°

Applications:

  • Chamfering

    • Ingersoll Cutting Tools 3204685 Series TD170 | 1.65 Overall Dia | 45 Degree | Drilling Chamfer Ring
