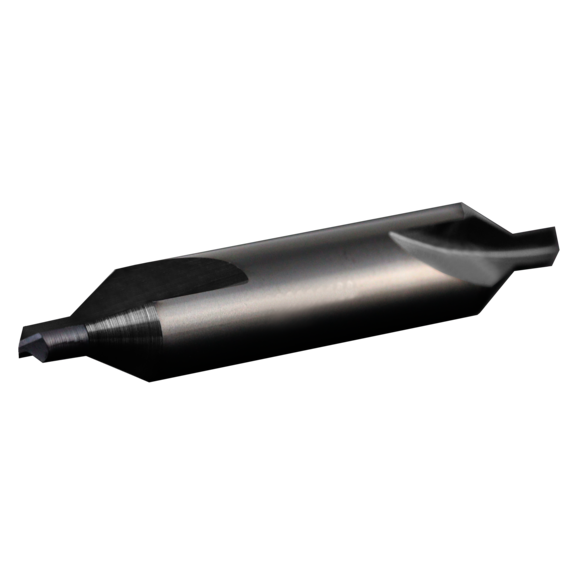

SGS 57009 301 Double End General Purpose Combined Drill and Countersink, #3 Drill - Wire, 0.213 in Drill - Decimal Inch, 60 deg Included Angle, 118 deg Point Angle, Micrograin Solid Carbide, Bright
SGS 57009
$37.20
/ EA
Out of Stock
- Number of Flutes: 2
- Material: Micrograin Solid Carbide
- Included Angle: 60 deg
- Body Diameter - Fractional: 1/4 in
- Point Diameter - Fractional: 7/64in
- Finish/Coating: Bright
- Cutting Direction: Right Hand
- Type: Double End General Purpose
- Cutting Edge Material: Micrograin Solid Carbide
- Drill Bit Size - Decimal: 0.213 in
- Drill Bit Size - Wire: #3
- Flute Length: 0.28 in
- Flute Type: Straight
- Overall Length - Metric: 2 mm
- Point Angle: 118 deg
- Point Type: Plain
- Series: 301
- Shank Size: 1/4 in
- Shank Type: HA Common
- Solid carbide provides better rigidity than high speed steel
- It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials
- Plain cutting edge
- +0.003/-0.000 in D1, -.0001/-.0005 in D2 tolerances
- Used to produce a center hole on material
- Spiral flutes are constructed of a higher flute angle to remove chips easier
- Used in lathe or cylindrical-grinder work to create conical holes
- It increases chip flow in softer materials such as aluminum, wood and plastic
- External Coolant
Application: Aerospace, Medical, Power Generation, Automotive, General Engineering, Mold and Die, Casting and Foundries
SGS® Combined Drill and Countersink | Double End General Purpose | Series: 301 | #3 | 7/64 in Point Dia | 1/4 in Body Dia | 2 in Overall Length | 2 Flutes | Straight Flute | 5/8 in Flute Length | 1/4 in Shank | HA Common Shank | 118 deg Point | Plain Point | 60 deg Included Angle | Right Hand Cutting | Micrograin Solid Carbide Cutting Edge | Micrograin Solid Carbide | Uncoated | Applicable Materials: Steel | Stainless Steel | Cast Iron | High Temp Alloys | Titanium | Non-Ferrous Materials | Plastic and Composites
