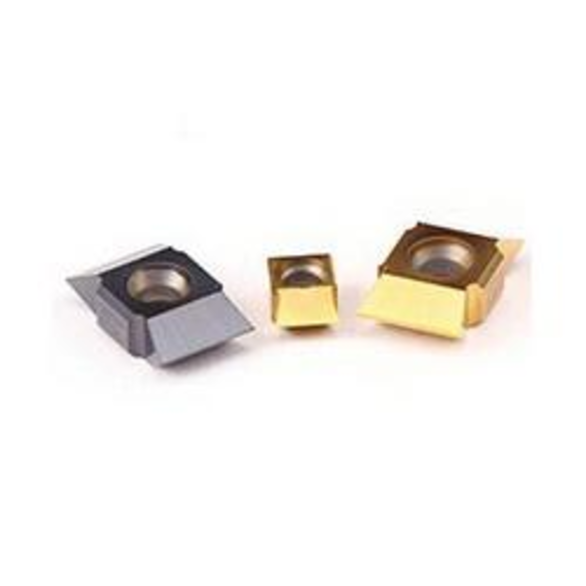

Emuge GF643005.9514 Indexable Threading Insert, GIGANT-IC Insert, 8 to 16 TPI, UN/Coarse/Fine Thread, Left Hand/Right Hand Cutting, Manufacturer's Grade: G688, Material Grade: K, M, N, P, S
EMUGE GF643005.9514
$63.97
/ EA
Out of Stock
- Finish/Coating: TiN Coated
- Insert Style: GIGANT-IC
- Insert Size: 10
- Thread Standard: UN/Coarse/Fine
- Manufacturer's Grade: G688
- Material Grade: K, M, N, P, S
- Material: Carbide
- Cutting Direction: Left Hand/Right Hand
- Length - Metric: 7 mm
- Series: GF643005
- Threads per Inch: 8 to 16
- Width - Metric: 5 mm
- Inserts are rigidly affixed in a solid steel precision pocket, securely fastened with a Torx® locking screw
- Sub-micro grain carbide inserts with advanced cutting geometry
- TiN coated for additional tool life
- Rotatable carbide inserts with 4 useable cutting edges provide up to 4x more tool life
Standards/Approvals: DIN 13|ANSI B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For internal threads
Emuge Threading Insert | Indexable | Series: GF643005 | GIGANT-IC Insert | 10 Insert | UN/Coarse/Fine | 8 to 16 | 5 mm Width | 7 mm Length | Manufacturer's Grade: G688 | Left Hand/Right Hand Cutting | Carbide | TiN Coated | Material Grade: K | M | N | P | S
