Ingersoll Cutting Tools

Ingersoll Cutting Tools 3212805 0.9449 (24.000 mm) to, 0.9803 (24.900 mm), 1.5XD, Replaceable-Tip Drill

INGCUT 3212805
$432.00 / EA
Out of Stock

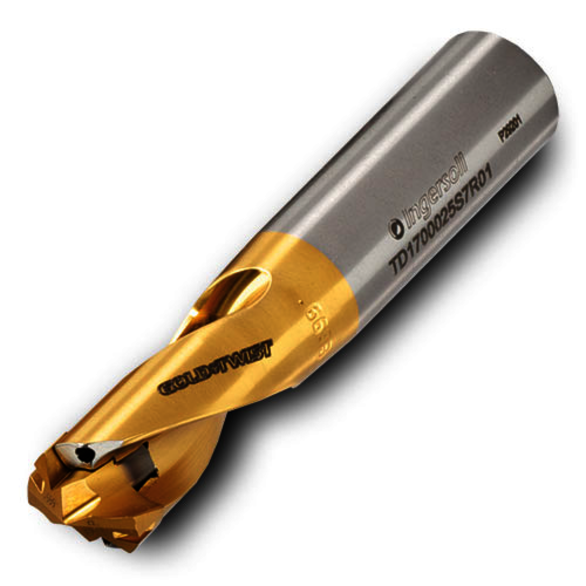

Ingersoll Cutting Tools 3212805 0.9449 (24.000 mm) to, 0.9803 (24.900 mm), 1.5XD, Replaceable-Tip Drill
  • Shank Diameter - Decimal: 1.250 in
  • Insert Style: TD
  • Coolant Through: Yes
  • Depth Ratio: 1.5xD
  • Diameter - Decimal: 0.9449 in
  • Diameter - Metric: 24 mm
  • Diameter Range: 0.9449-0.9803 in
  • Extension Length: 2.91 in
  • Flute Length: 1.42 in
  • Overall Length: 5.27 in
  • Series: TD 1.5:1 Bodies Inch Cylindrical Shank
  • Shank Length: 2.36 in
  • Shank Type: Cylindrical
  • Replaceable Tipped Drill Bodies L:D Ratio - 1.5:1
  • Coolant Through
  • Hold +.002/-.000 on Hole Diameter

Applications:

  • Coolant-Thru
  • Drilling

    • Ingersoll Cutting Tools 3212805 0.9449 (24.000 mm) to | 0.9803 (24.900 mm) | 1.5XD | 1.250 | Replaceable-Tip Drill
